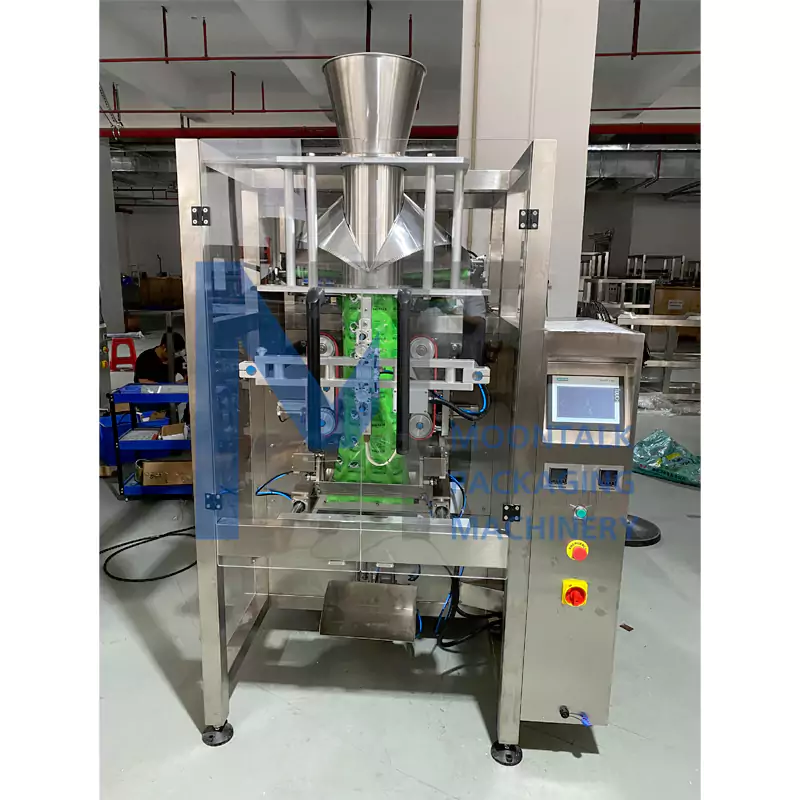

Automatic Vertical
Form & Fill Seal Machine

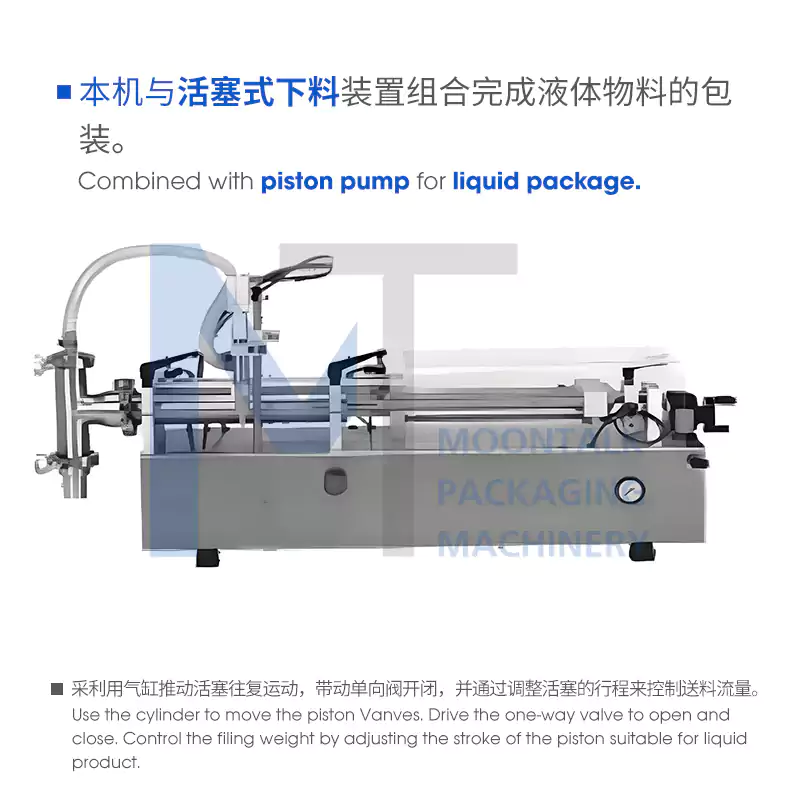

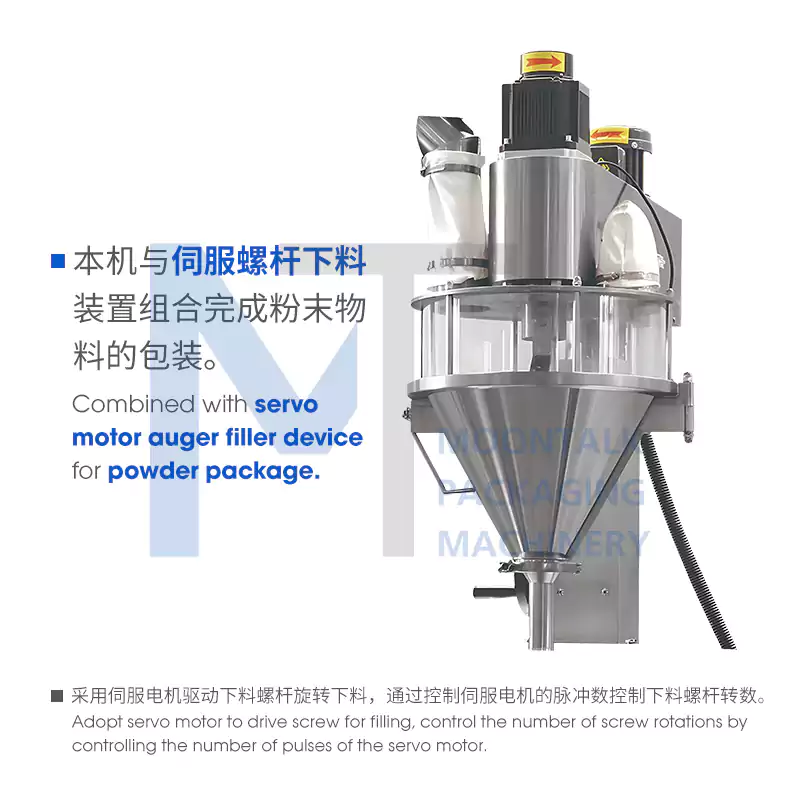

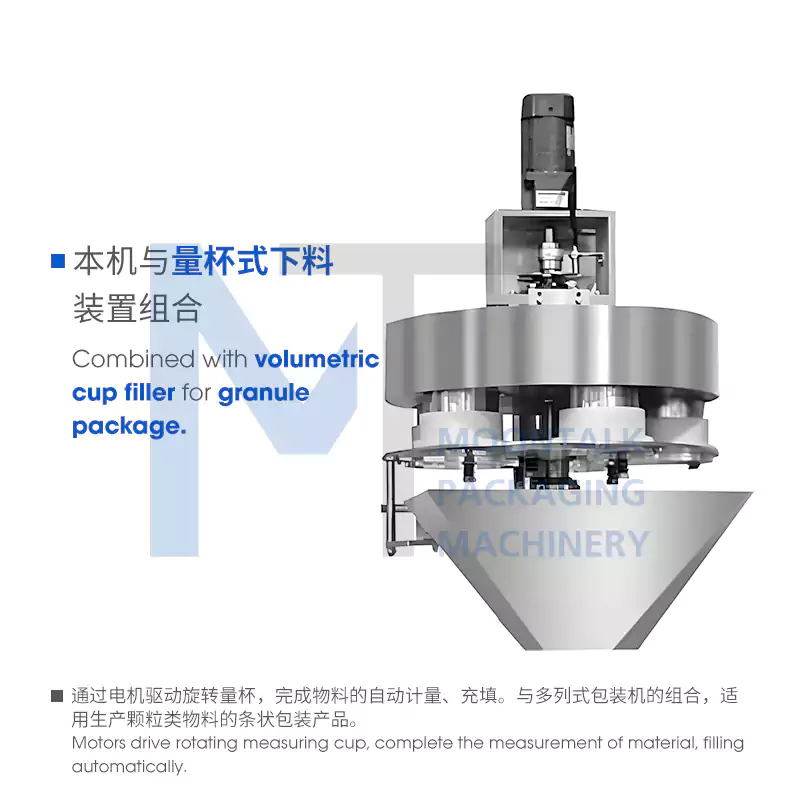

Automatic Vertical Form & Fill Seal Machine is a kind of high efficient and intelligent packaging equipment, equipped with different discharging equipment can be used for automatic measuring, bag making, filling, sealing and cutting of many kinds of materials such as granule, powder, liquid, tablet, block and so on.
It is suitable for food, medicine, chemical, daily chemical and other industries.
Why Choose Us
- 1. The use of closed electrical box and chassis, effectively preventing particles, dust and small animals from entering to prevent damage to electrical appliances and short-circuit wires.
- 2. Machinery comes with fault self-diagnosis function, when the machinery is faulty, the system intelligently displays the cause of the fault, timely troubleshooting.
- 3. The temperature of horizontal and vertical sealing is controlled independently, and the accuracy can reach ±1℃ degree, which is more widely applicable to various packaging materials.
- 4. Adoption of servo drive system, sealing and cutting position adopts motor automatic deviation correction device.
| Technical Data | L420 | L520 | L620 | L720 |
|---|---|---|---|---|
|
Pouch Length |
80-300mm |
80-350mm |
100-450mm |
100-500mm |
|
Pouch Width |
60-200mm |
100-250mm |
65-300mm |
65-350mm |
|
Packaging Speed |
10-60bags/min |
10-60bags/min |
10-45bags/min |
10-40bags/min |
|
Pouch Type |
Pillow bag; Stand-up bag; 4 side-seal pouch; 3 side-seal pouch; |
|||
|
Weighing Range |
2kg |
4kg |
8kg |
14kg |
|
Precision |
±0.5%-1% |
±0.5%-1% |
±0.5%-1% |
±0.5%-1% |
|
Power |
3kW |
3kW |
3.2kW |
3.5kW |
|
Dimension |
1217*1015*1343mm |
1488*1080*1490mm |
1488*1180*1550mm |
1780*1350*2050mm |
|
Weight |
450kg |
500kg |
550kg |
600kg |
Why Choose Us

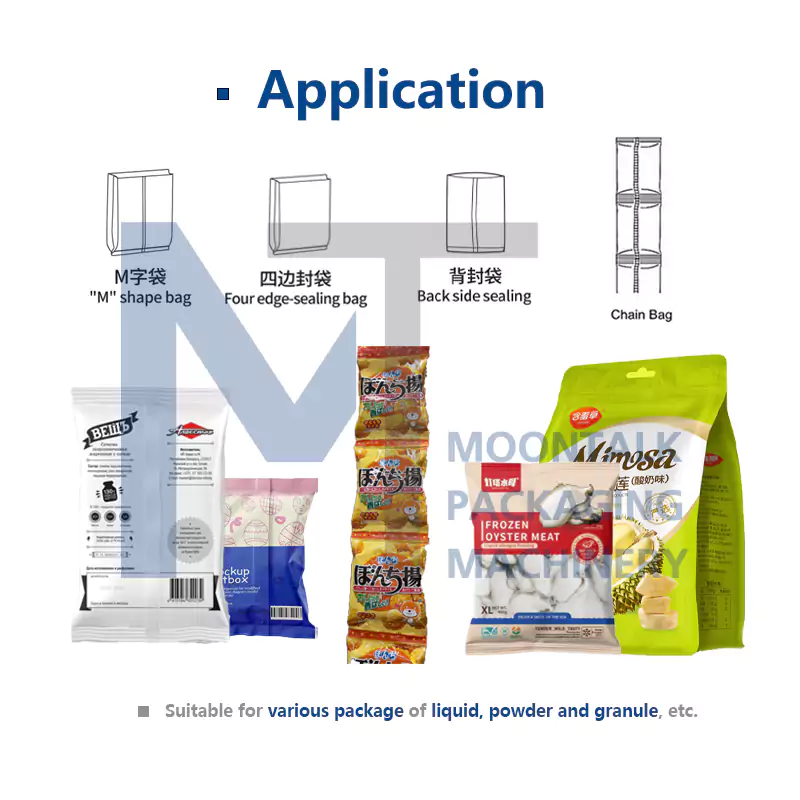

Application
Features
- 1. The use of closed electrical box and chassis, effectively preventing particles, dust and small animals from entering to prevent damage to electrical appliances and short-circuit wires.
- 2. Machinery comes with fault self-diagnosis function, when the machinery is faulty, the system intelligently displays the cause of the fault, timely troubleshooting.
- 3. The temperature of horizontal and vertical sealing is controlled independently, and the accuracy can reach ±1℃ degree, which is more widely applicable to various packaging materials.
- 4. Adoption of servo drive system, sealing and cutting position adopts motor automatic deviation correction device.
Specification
| Technical Data | L420 | L520 | L620 | L720 |
|---|---|---|---|---|
|
Pouch Length |
80-300mm |
80-350mm |
100-450mm |
100-500mm |
|
Pouch Width |
60-200mm |
100-250mm |
65-300mm |
65-350mm |
|
Packaging Speed |
10-60bags/min |
10-60bags/min |
10-45bags/min |
10-40bags/min |
|
Pouch Type |
Pillow bag; Stand-up bag; 4 side-seal pouch; 3 side-seal pouch; |
|||
|
Weighing Range |
2kg |
4kg |
8kg |
14kg |
|
Precision |
±0.5%-1% |
±0.5%-1% |
±0.5%-1% |
±0.5%-1% |
|
Power |
3kW |
3kW |
3.2kW |
3.5kW |
|
Dimension |
1217*1015*1343mm |
1488*1080*1490mm |
1488*1180*1550mm |
1780*1350*2050mm |
|
Weight |
450kg |
500kg |
550kg |
600kg |

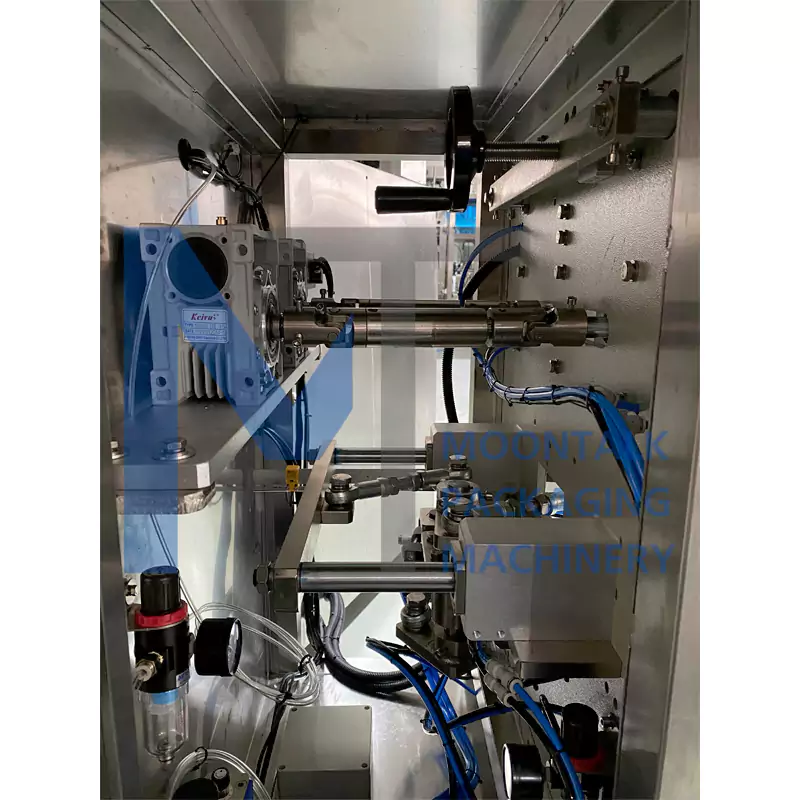

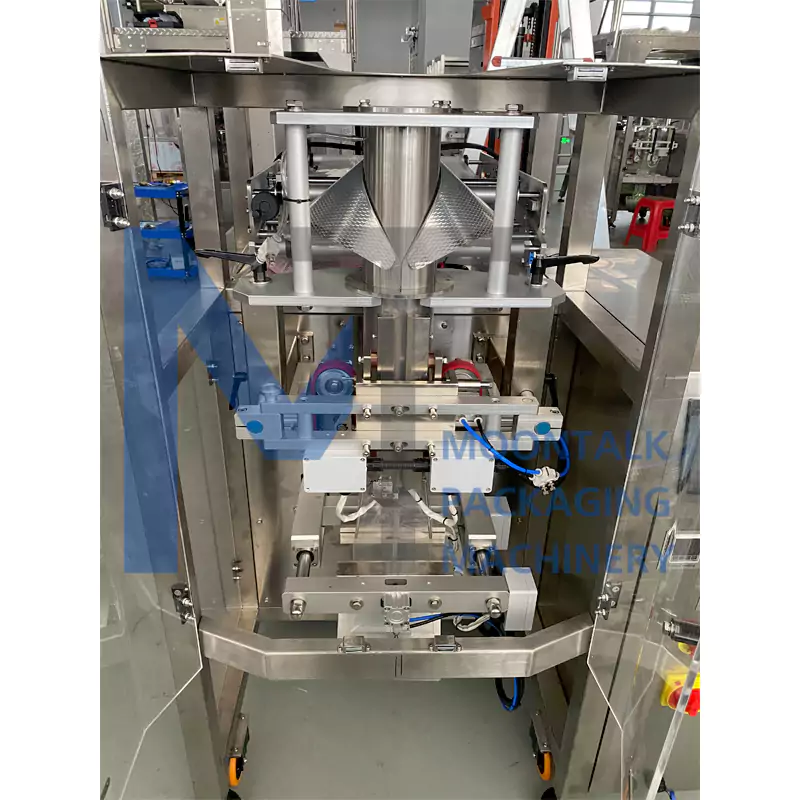

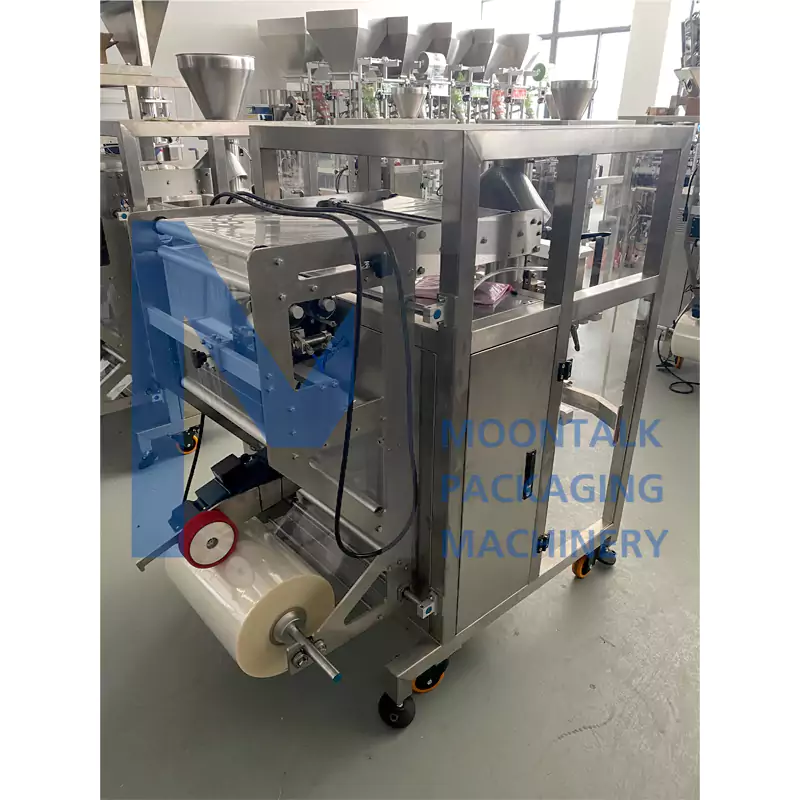

Product Details
