Rotary Bag Giving Machine
Rotary pre-made pouch packaging machine is an automatic equipment which is specially applied to pack pre-made bags with high requirements on appearance.
It can complete a series of actions such as opening, printing, filling and sealing of bags through multiple stations, and is suitable for various granules, liquids, slurries, flakes and powdery materials.
It is widely used in food, medicine, beverage, chemical, agriculture, hardware, toys and other industries.
Why Choose Us
- 1. Can be equipped with remote diagnostic system, the shortest time for equipment troubleshooting.
- 2. Can be equipped with automatic lubrication system to extend the life of the machine and reduce labor cost.
- 3. Can be equipped with a one-touch clamp adjustment system, according to the width of the bag to quickly adjust the equipment.
- 4. Machinery comes with fault self-diagnosis function, when the machinery is faulty, the system intelligently displays the cause of the fault, timely troubleshooting.
| Technical Data | G8200 | G8250 | G8300 |
|---|---|---|---|
|
Pouch Length |
100-300mm |
100-350mm |
150-450mm |
|
Pouch Width |
70-200mm |
130-250mm |
200-300mm |
|
Packaging Speed |
max 60 bags/min |
||
|
Pouch Type |
Pre-made bag; Stand-up bag; 4 side-seal pouch; 3 side-seal pouch; Special-shaped bag |
||
|
Weighing Range |
10g-1kg |
10g-2kg |
10g-3kg |
|
Precision |
±0.5%-1% |
||
|
Air consumption |
0.8MPa 300L/min |
||
|
Power |
1.5kW |
1.8kW |
2kW |
|
Dimension |
1900*1400*1450mm |
1900*1400*1450mm |
2000*1500*1550mm |
|
Weight |
1300kg |
1300kg |
1500kg |
Why Choose Us
Application
Features
- 1. Can be equipped with remote diagnostic system, the shortest time for equipment troubleshooting.
- 2. Can be equipped with automatic lubrication system to extend the life of the machine and reduce labor cost.
- 3. Can be equipped with a one-touch clamp adjustment system, according to the width of the bag to quickly adjust the equipment.
- 4. Machinery comes with fault self-diagnosis function, when the machinery is faulty, the system intelligently displays the cause of the fault, timely troubleshooting.
Specification
| Technical Data | G8200 | G8250 | G8300 |
|---|---|---|---|
|
Pouch Length |
100-300mm |
100-350mm |
150-450mm |
|
Pouch Width |
70-200mm |
130-250mm |
200-300mm |
|
Packaging Speed |
max 60 bags/min |
||
|
Pouch Type |
Pre-made bag; Stand-up bag; 4 side-seal pouch; 3 side-seal pouch; Special-shaped bag |
||
|
Weighing Range |
10g-1kg |
10g-2kg |
10g-3kg |
|
Precision |
±0.5%-1% |
||
|
Air consumption |
0.8MPa 300L/min |
||
|
Power |
1.5kW |
1.8kW |
2kW |
|
Dimension |
1900*1400*1450mm |
1900*1400*1450mm |
2000*1500*1550mm |
|
Weight |
1300kg |
1300kg |
1500kg |

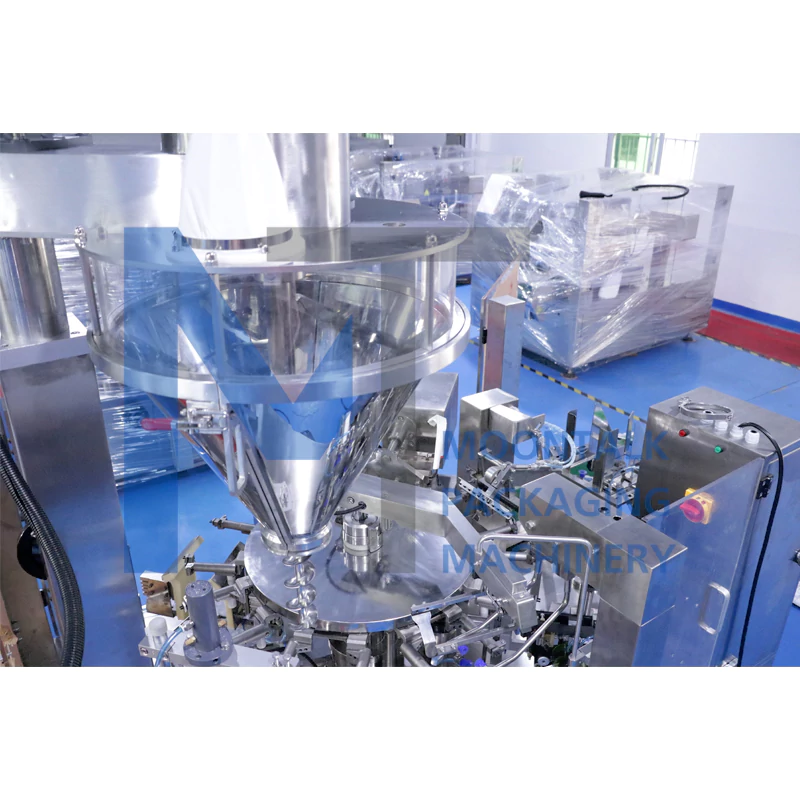

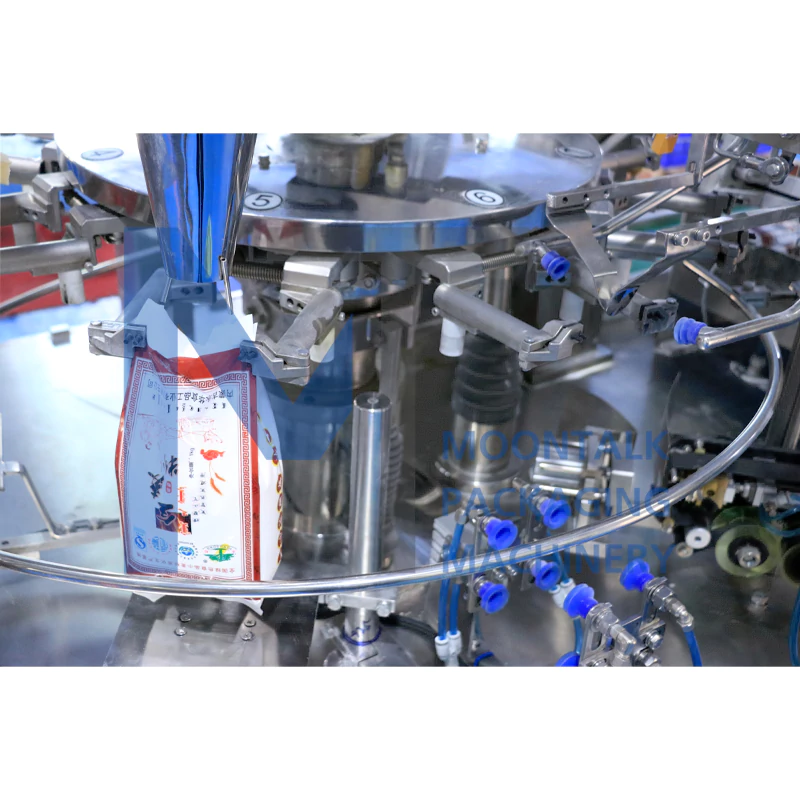

Product Details
