Intelligent automatic
Blister Packing Machine
Automatic Blister Packing Machine is a kind of high efficient and intelligent automatic packaging equipment, which is mainly used for aluminum-plastic (PVC/PVDC/aluminum foil) or plastic-plastic (PVC/PVC) blister forming, filling and sealing packaging of pharmaceuticals, health care products, foodstuffs and other products.
The equipment adopts PLC control system and servo drive technology to realize the whole process of automatic feeding, heating and forming, material filling, heat sealing and punching and forming, etc. It has the features of fast packing speed, high molding precision and good sealing performance, etc.
It supports the rapid change of multiple molds to meet the needs of different products. Supporting a variety of molds for quick replacement to meet the packaging needs of different specifications of blister plate, widely used in pharmaceutical, food, electronics and other industries, is the key equipment to improve the efficiency and quality of packaging.
Why Choose Us
- 1. Forming, heat sealing, batch marking, creasing, punching and cutting devices all use rack and pinion mandrel positioning. Shaking handle, all kinds of devices can move freely on the mandrel, and can be quickly corrected and positioned according to the scale and fastening nut.
- 2. Stroke can be adjusted, can adapt to various sizes of packaging. Counter-heating, positive pressure molding, upper and lower anilox, cylinder heat sealing, automatic feeding, automatic creasing and batch marking, automatic punching and cutting, easy to operate, reliable operation.
- 3. Positive pressure molding with mechanical punch ensures even and firm molding of large blisters. It can be used for the packaging of syringes, vials, face masks, large pills and so on.
- 4. The main drive part adopts parallel shaft helical gear reducer, running smoothly. The molds for forming, heat sealing, creasing, etc. are positioned by shaw nails and fastened by pressure plate, which makes the positioning accurate, easy to change the molds, and saves the package materials.
- 5. The machine body can be divided and fabricated according to the requirements, which makes it easy for the equipment to enter the workshop.
| Technical Data | DPB-80 | DPB-140 | DPB-260 | DPB-320 | DPB-400 |
|---|---|---|---|---|---|
|
Punching |
10-35 times/min |
15-35 times/min |
6-50 times/min |
10-35 times/min |
10-35 times/min |
|
Maximum Molding Area |
120*105*15mm |
160*125*16mm |
260*120*14mm |
320*150*26mm |
400*150*26mm |
|
Standard Stroke Range |
20-70mm |
20-110mm |
40-130mm
Can be customized to 150mm |
40-160mm
Can be customized to 180mm |
40-160mm
Can be customized to 180mm |
|
Standard Block |
80*57mm |
80*57mm |
80*57mm |
80*57mm |
80*57mm |
|
Air Pressure |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.4-0.6Mpa |
0.4-0.6Mpa |
0.4-0.6Mpa |
|
Air Consumption |
≥350L/min |
≥350L/min |
≥350L/min |
≥350L/min |
≥350L/min |
|
Power |
3.2kW |
3.2kW |
6.2kW |
7.5kW |
7.5kW |
|
PVC Hard Sheet |
0.15-0.5*80mm |
0.15-0.5*140mm |
0.25-0.5*270mm |
0.25-0.5*320mm |
0.25-0.5*400mm |
|
PTP Aluminum Foil |
0.02-0.035*80mm |
0.02-0.035*140mm |
0.02-0.035*270mm |
0.02-0.035*320mm |
0.02-0.035*400mm |
|
Dialysis Paper |
50-100g*80mm |
50-100g*140mm |
50-100g*270mm |
50-100g*320mm |
50-100g*400mm |
|
Mold cooling |
Tap Water or Recycling Water |
||||
|
Dimension |
1600*600*1100mm |
2300*700*1410mm |
3000*730*1600mm |
3300*730*1600mm |
3300*800*1600mm |
|
Weight |
385kg |
900kg |
1500kg |
1600kg |
1700kg |
Why Choose Us
- 1. Forming, heat sealing, batch marking, creasing, punching and cutting devices all use rack and pinion mandrel positioning. Shaking handle, all kinds of devices can move freely on the mandrel, and can be quickly corrected and positioned according to the scale and fastening nut.
- 2. Stroke can be adjusted, can adapt to various sizes of packaging. Counter-heating, positive pressure molding, upper and lower anilox, cylinder heat sealing, automatic feeding, automatic creasing and batch marking, automatic punching and cutting, easy to operate, reliable operation.
- 3. Positive pressure molding with mechanical punch ensures even and firm molding of large blisters. It can be used for the packaging of syringes, vials, face masks, large pills and so on.
- 4. The main drive part adopts parallel shaft helical gear reducer, running smoothly. The molds for forming, heat sealing, creasing, etc. are positioned by shaw nails and fastened by pressure plate, which makes the positioning accurate, easy to change the molds, and saves the package materials.
- 5. The machine body can be divided and fabricated according to the requirements, which makes it easy for the equipment to enter the workshop.
| Technical Data | DPB-80 | DPB-140 | DPB-260 | DPB-320 | DPB-400 |
|---|---|---|---|---|---|
|
Punching |
10-35 times/min |
15-35 times/min |
6-50 times/min |
10-35 times/min |
10-35 times/min |
|
Maximum Molding Area |
120*105*15mm |
160*125*16mm |
260*120*14mm |
320*150*26mm |
400*150*26mm |
|
Standard Stroke Range |
20-70mm |
20-110mm |
40-130mm
Can be customized to 150mm |
40-160mm
Can be customized to 180mm |
40-160mm
Can be customized to 180mm |
|
Standard Block |
80*57mm |
80*57mm |
80*57mm |
80*57mm |
80*57mm |
|
Air Pressure |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.4-0.6Mpa |
0.4-0.6Mpa |
0.4-0.6Mpa |
|
Air Consumption |
≥350L/min |
≥350L/min |
≥350L/min |
≥350L/min |
≥350L/min |
|
Power |
3.2kW |
3.2kW |
6.2kW |
7.5kW |
7.5kW |
|
PVC Hard Sheet |
0.15-0.5*80mm |
0.15-0.5*140mm |
0.25-0.5*270mm |
0.25-0.5*320mm |
0.25-0.5*400mm |
|
PTP Aluminum Foil |
0.02-0.035*80mm |
0.02-0.035*140mm |
0.02-0.035*270mm |
0.02-0.035*320mm |
0.02-0.035*400mm |
|
Dialysis Paper |
50-100g*80mm |
50-100g*140mm |
50-100g*270mm |
50-100g*320mm |
50-100g*400mm |
|
Mold cooling |
Tap Water or Recycling Water |
||||
|
Dimension |
1600*600*1100mm |
2300*700*1410mm |
3000*730*1600mm |
3300*730*1600mm |
3300*800*1600mm |
|
Weight |
385kg |
900kg |
1500kg |
1600kg |
1700kg |
Related Products
- All
- Bag Packing
- Bottle Packing
- Blister Packing
- Can Packing
- Fully Automatic Packaging Line
Stick Packing Machine

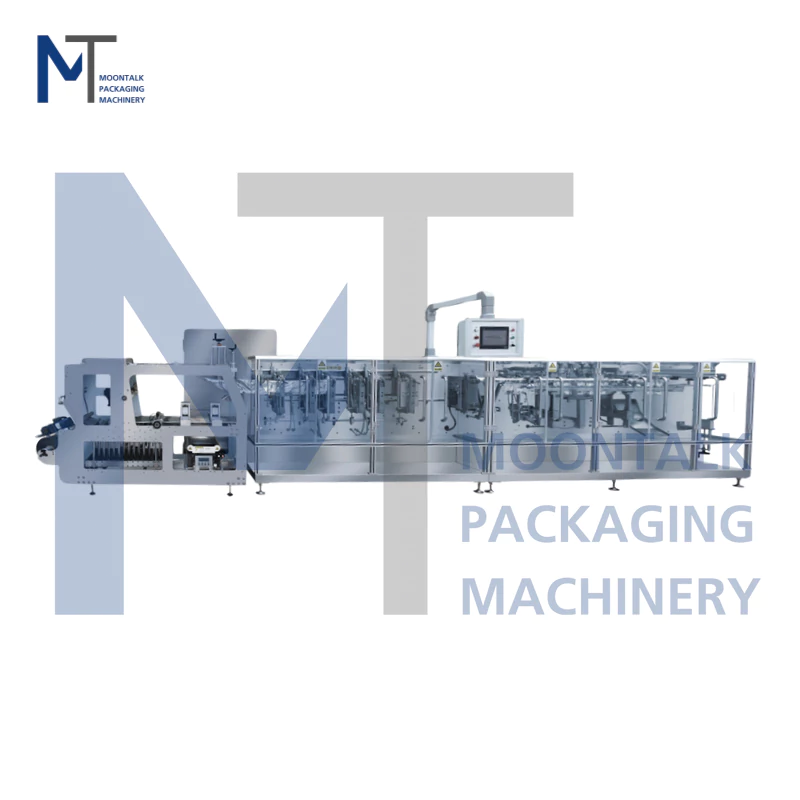

HFFS Horizonal Form&Fill Seal Machine

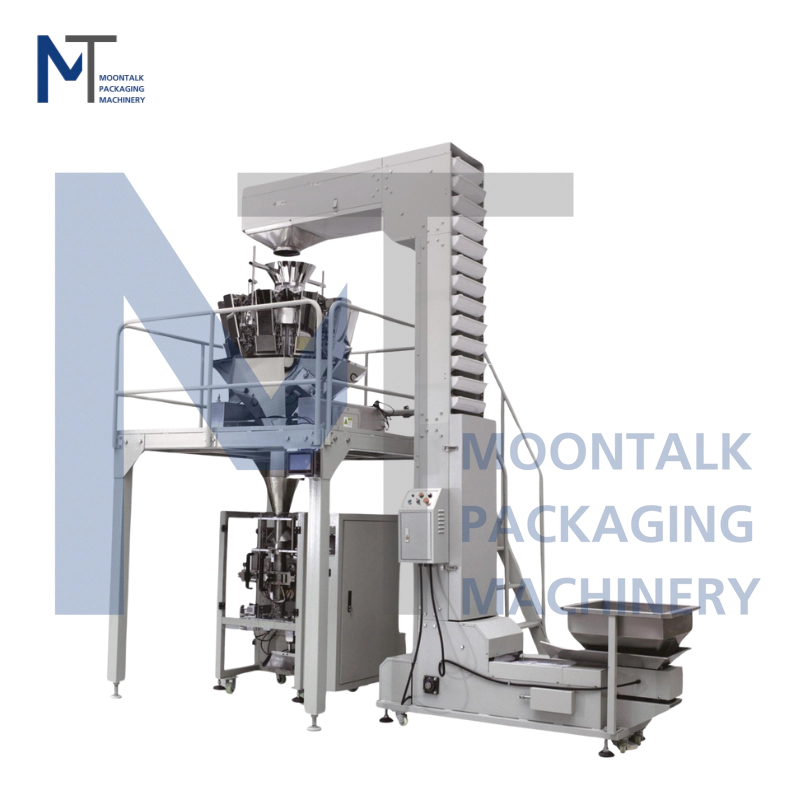

VFFS Vertical Form&Fill Seal Machine

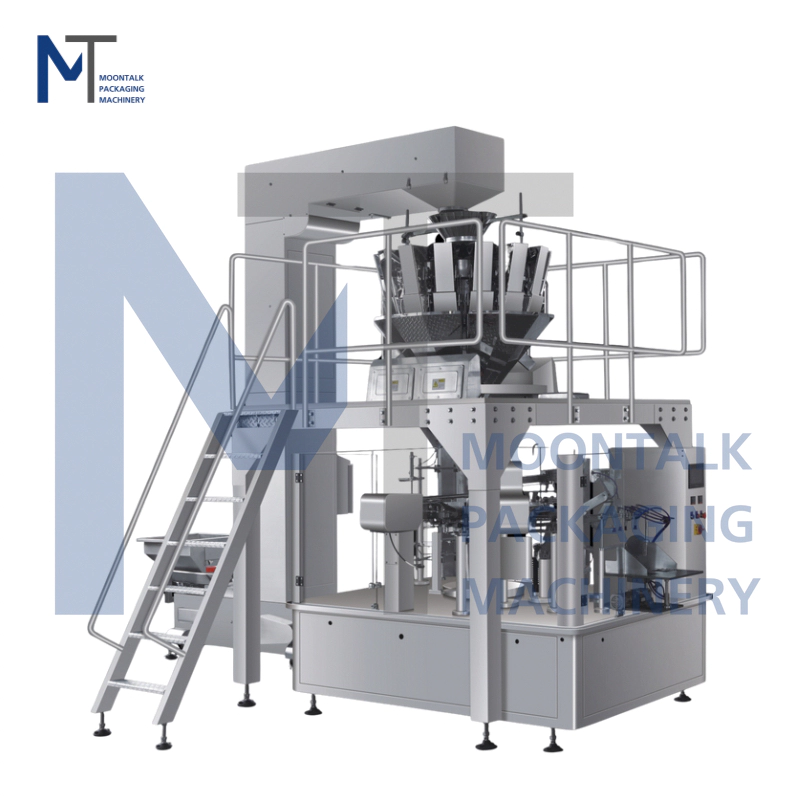

Rotary Bag Giving Machine
